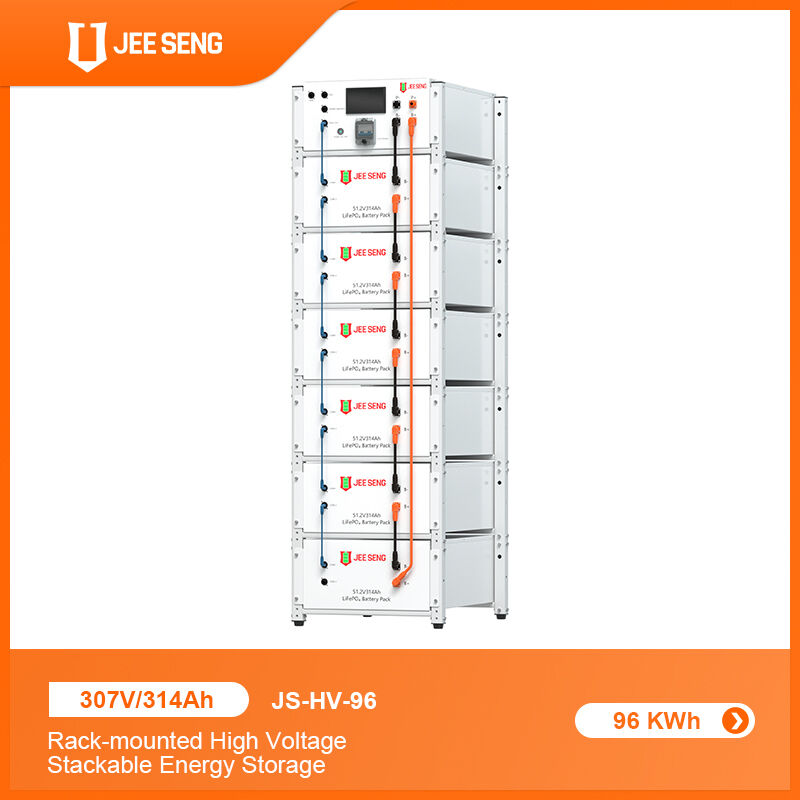

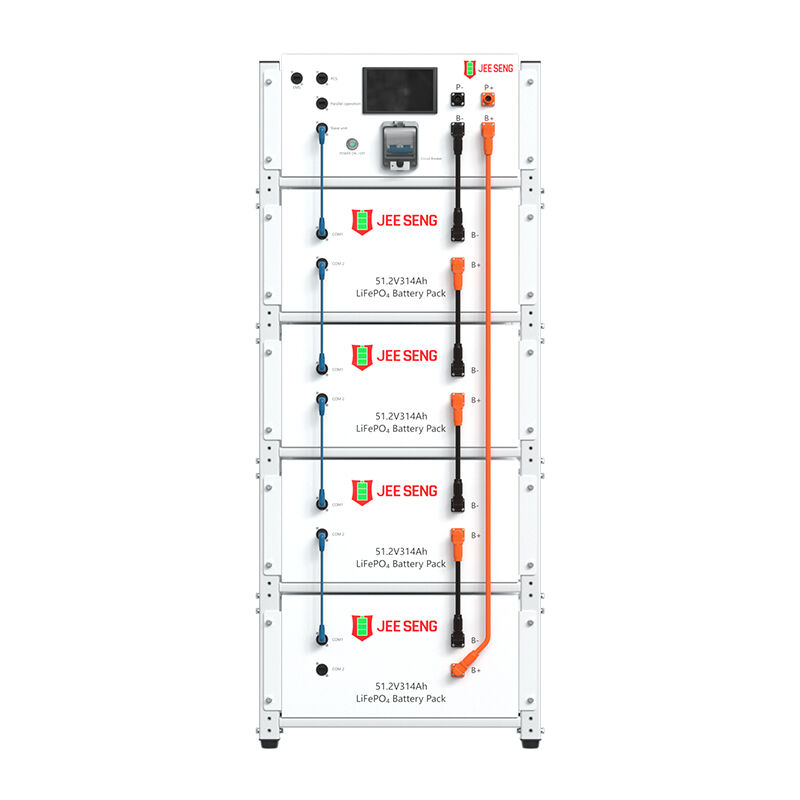

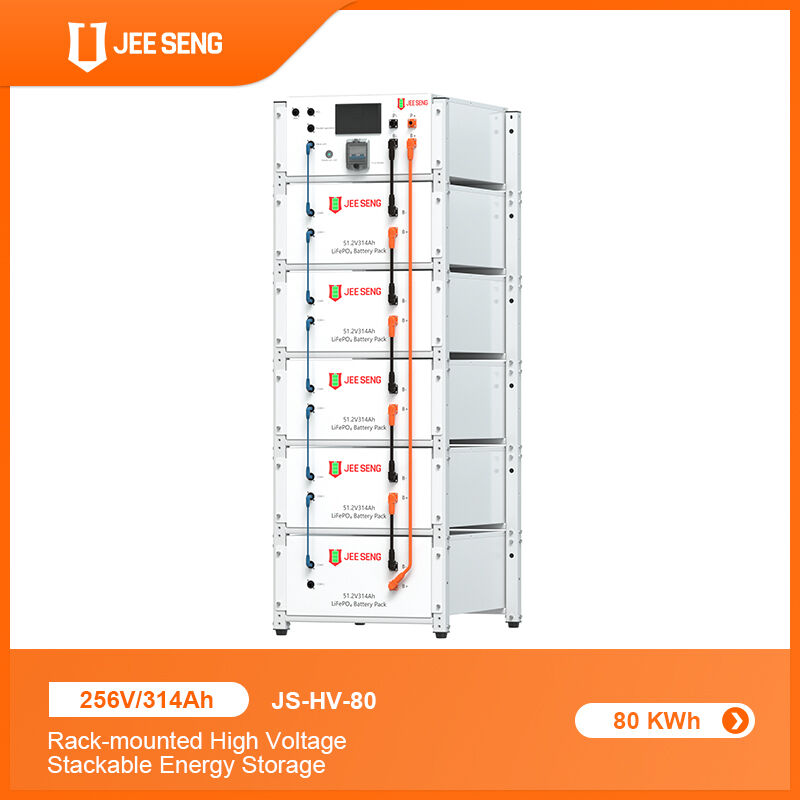

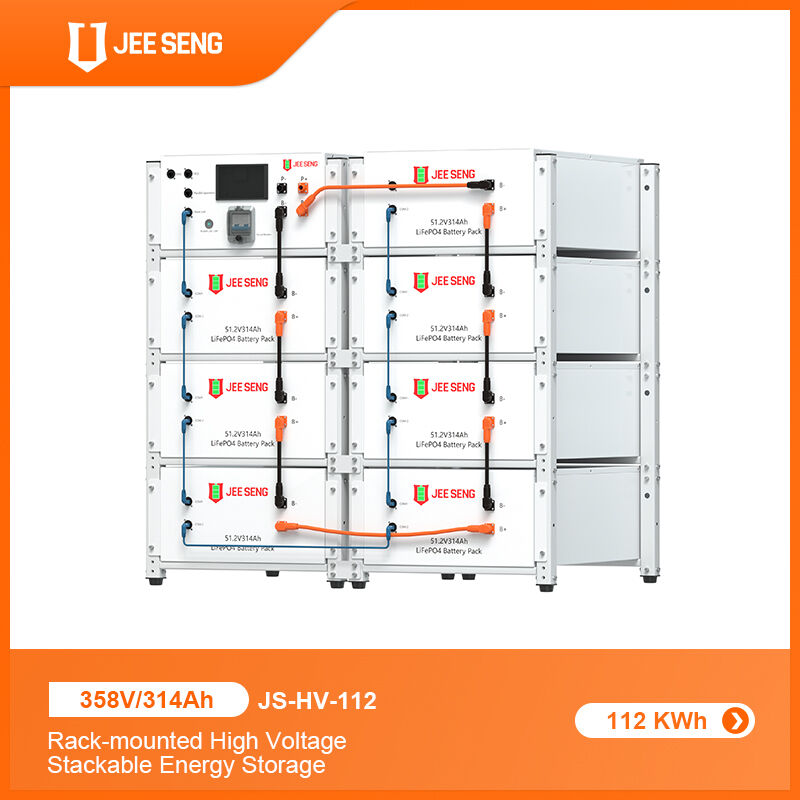

Rack-mounted High-Voltage Stackable Energy Storage
Safe and Reliable:
·LiFePO4 Batteries with safety performance and long cycle life
·Intelligent BMS
·Support aerosol fire extinguishing
·Support up to 140A current output
Intelligent BMS:
·Multi protection functions including over-discharge, over-charge, over-current and over-high or low temperature
·Automatically manage charge and discharge state and balance current and voltage of each cell
High-Efficiency Use:
·Low self-discharge up to 6 months, no memory effect
Flexible Expansion:
·Support 4 ~ 15 packs in series
Support Wifi&Upgrade:
·Wi-Fi module, real-time data monitoring
·Support USB upgrade, remote upgrade
Economical&Convenient:
·Rack Type, less footprint, lower cost, higher spaceutilization
·Embedded designed module for quick installation and easy maintenance
Parameters:
|
Product Model
|
JS-HV-64
|
JS-HV-80
|
JS-HV-96
|
JS-HV-112
|
|
Main Parameter
|
|
Cell Chemistry
|
LiFePO4
|
|
Module Energy (kWh)
|
16.076
|
|
Module Nominal Voltage (M)
|
51.2V
|
|
Module Capacity (Ah)
|
314
|
|
Battery Module Qty In Series (Optional)
|
4
|
5
|
6
|
7
|
|
System Nominal Voltage (V)
|
204.8
|
256.0
|
307.2
|
358.4
|
|
System Operating Voltage (M)
|
179V~227V
|
224V~284V
|
269V~341V
|
314V~398V
|
|
System Energy (kWh)
|
64.31
|
80.39
|
96.46
|
112.53
|
|
System Usable Energy (kWh) 90%
|
57.88
|
72.35
|
86.81
|
101.28
|
|
Charge/Discharge Current(A)
|
157A
|
|
Other Parameter
|
|
|
|
|
Working Temperature (°C)
|
Charge:0~55/Discharge :-20-55
|
|
Status Indicator
|
Wake Up/Power light
|
|
Communication Port
|
CAN/RS485
|
|
Humidity
|
5%~85%RH
|
|
Altitude
|
≤2000m
|
|
IP Rating of Enclosure
|
IP20
|
|
Dimension (W*D*H, mm)
|
1380*573.8*771mm
|
1648*573.8*771mm
|
1917*573.8*771mm
|
1380*1150*771mm
|
|
Weight Approximate (kg)
|
550kg
|
675kg
|
800kg
|
925kg
|
|
Installation Location
|
Rack Mounting
|
|
Storage Temperature (°C)
|
0~35°C
|
|
Recommend Depth of Discharge
|
90%
|
|
Cycle Life
|
25±2℃, 0.5C/0.5C, DOD80%≥6000
|
|
Warranty
|
3 years
|
|
Certification
|
CE, UN38 .3,MSDS
|
Products Features:
- Grade A cells – Using high quality lithium iron phosphate battery as the main body of energy storage, with feature of large capacity,light weight,large power.
- Flexible configuration – multiple battery modules can be stacked for expanding output and Capacity.
- Good compatibility – Standard communication protocol, CAN and RS485, compatible with most popular hybrid and off-grid inverters in the market.
- Built in Smart BMS, accurate coulomb counter (display)
- Long life cycle – More than 6000 times or 10 years.
- High protection measures – Built-in Aerosol active fire protection module, thermal runaway detection and active fire protection.
- Quick installation design – Plug and play assembly, no more cables between packs, saves manual installation costs.
Download Center
Frequently Asked Questions (FAQ):
Question 1: Are you a manufacturer or just a trading company?
Answer 1: We are a leading manufacturer specializing in battery production, and we excel in providing total solar energy system solutions.
Question 2: What is your typical lead time for orders?
Answer 2: We ensure prompt delivery, with a standard lead time of 3 to 15 days.
Question 3: What is the duration of the warranty for your products?
Answer 3: We offer an extensive warranty period for our batteries, ranging from 5 to 10 years.
Question 4: Can you describe the level of your technical support?
Answer 4: We provide lifelong online technical support through various platforms like Whatsapp, Skype, Wechat, and Email. Should any issues arise post-delivery, we are ready to offer video calls for immediate assistance, and if necessary, dispatch our engineers overseas to support our clients.
Question 5: How can one become an agent for your company?
Answer 5: Contact us via our website, email, or telephone to discuss and finalize the details of becoming our agent.
Question 6: Is it possible to get a sample, and is it free of charge?
Answer 6: While a sample is subject to a fee, we guarantee to refund the cost upon the placement of a subsequent bulk order.
Question 7: Do you offer OEM/ODM support?
Answer 7: Absolutely, we specialize in offering customized OEM/ODM services tailored to our partners' needs.
For any further inquiries, please feel free to reach out to our sales manager using the provided contact information. Thank you for your interest!
